require.h File Reference

#include "../engine/entity.h"
#include "../engine/input.h"
#include "../engine/world.h"
#include "../names.h"
#include "../rendering/context.h"

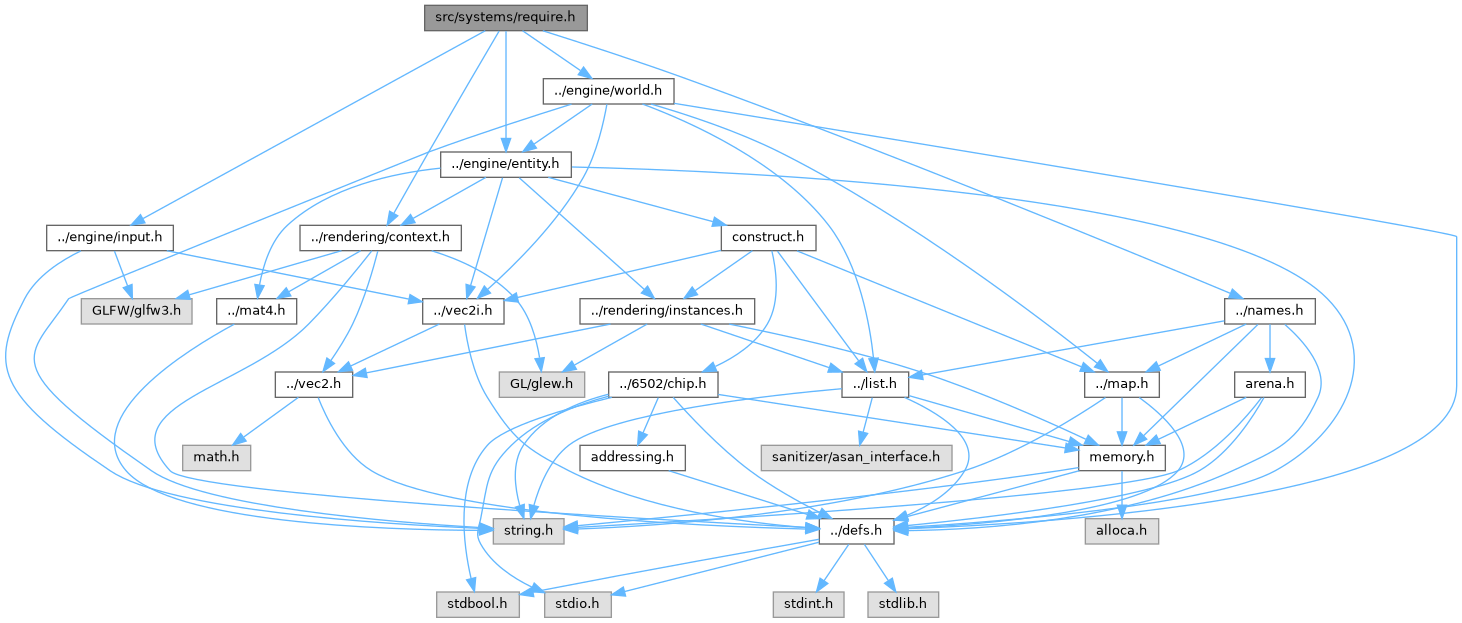

Include dependency graph for require.h:

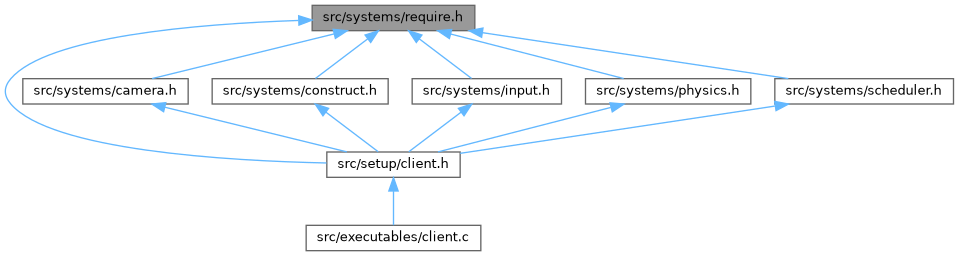

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	system_payload_t
struct	system_req_t
struct	system_requirements_declaration_t

Macros
#define	SYSTEM_REQ_PTR_REQUIRED   ((void *)1)
	Sentinel value. Marks the system resourc as required. The scheduler must guarantee exclusive access.
#define	SYSTEM_REQ_PTR_UNUSED   ((void *)0)
	Sentinel value. Marks the system resource as unused. The scheduler must provide a NULL pointer.
#define	SYSTEM_REQ_NO_DEPS   0, 0

Typedefs
typedef void(*	system_runner_f) (system_payload_t payload, allocator_t temporary_allocator)

Enumerations
enum	system_phase_t {   SYSTEM_PHASE_PRE_UPDATE , SYSTEM_PHASE_UPDATE , SYSTEM_PHASE_FIXED_UPDATE , SYSTEM_PHASE_POST_UPDATE ,   SYSTEM_PHASE_PRE_RENDER , SYSTEM_PHASE_RENDER , SYSTEM_PHASE_POST_RENDER , SYSTEM_PHASE_count }
enum	system_resource_mask_t { SYSTEM_RESOURCE_MASK_WORLD = 0b1 , SYSTEM_RESOURCE_MASK_INPUT = 0b10 , SYSTEM_RESOURCE_MASK_RENDERING_CONTEXT = 0b100 , SYSTEM_RESOURCE_MASK_SYSTEM_SPECIFIC_DATA = 0b1000 }

Functions
static const char *	system_phase_to_str (system_phase_t phase)
static system_payload_t	system_payload_new (world_t *world, input_t *input, rendering_ctx_t *rendering_ctx, double dt, double fdt)
static system_payload_t	system_payload_new_inherit (system_req_t requirements, system_payload_t *parent)
	Copy the parameters specified in the requirements into a new payload.
static system_req_t	system_req_new (name_t name, system_resource_mask_t resources)
static void	system_req_entity_kinds_const (system_req_t *req, entity_kind_mask_t entity_kind_mask)
static void	system_req_entity_kinds_mut (system_req_t *req, entity_kind_mask_t entity_kind_mask)
static entity_iter_t	system_payload_entity_iter (system_payload_t *payload)

Macro Definition Documentation

SYSTEM_REQ_NO_DEPS

#define SYSTEM_REQ_NO_DEPS   0, 0

SYSTEM_REQ_PTR_REQUIRED

#define SYSTEM_REQ_PTR_REQUIRED   ((void *)1)

Sentinel value. Marks the system resourc as required. The scheduler must guarantee exclusive access.

SYSTEM_REQ_PTR_UNUSED

#define SYSTEM_REQ_PTR_UNUSED   ((void *)0)

Sentinel value. Marks the system resource as unused. The scheduler must provide a NULL pointer.

Typedef Documentation

system_runner_f

typedef void(* system_runner_f) (system_payload_t payload, allocator_t temporary_allocator)

Enumeration Type Documentation

system_phase_t

enum system_phase_t

Enumerator
SYSTEM_PHASE_PRE_UPDATE
SYSTEM_PHASE_UPDATE
SYSTEM_PHASE_FIXED_UPDATE
SYSTEM_PHASE_POST_UPDATE
SYSTEM_PHASE_PRE_RENDER
SYSTEM_PHASE_RENDER
SYSTEM_PHASE_POST_RENDER
SYSTEM_PHASE_count

system_resource_mask_t

enum system_resource_mask_t

Enumerator
SYSTEM_RESOURCE_MASK_WORLD
SYSTEM_RESOURCE_MASK_INPUT
SYSTEM_RESOURCE_MASK_RENDERING_CONTEXT
SYSTEM_RESOURCE_MASK_SYSTEM_SPECIFIC_DATA

Function Documentation

system_payload_entity_iter()

static entity_iter_t system_payload_entity_iter ( system_payload_t *  payload )

static

system_payload_new()

static system_payload_t system_payload_new ( world_t *  world, input_t *  input, rendering_ctx_t *  rendering_ctx, double  dt, double  fdt  )

static

system_payload_new_inherit()

static system_payload_t system_payload_new_inherit ( system_req_t  requirements, system_payload_t *  parent  )

static

Copy the parameters specified in the requirements into a new payload.

Returns

the payload with the skipped fields zero-ed out

system_phase_to_str()

static const char * system_phase_to_str ( system_phase_t  phase )

static

system_req_entity_kinds_const()

static void system_req_entity_kinds_const ( system_req_t *  req, entity_kind_mask_t  entity_kind_mask  )

static

system_req_entity_kinds_mut()

static void system_req_entity_kinds_mut ( system_req_t *  req, entity_kind_mask_t  entity_kind_mask  )

static

system_req_new()

static system_req_t system_req_new ( name_t  name, system_resource_mask_t  resources  )

static
